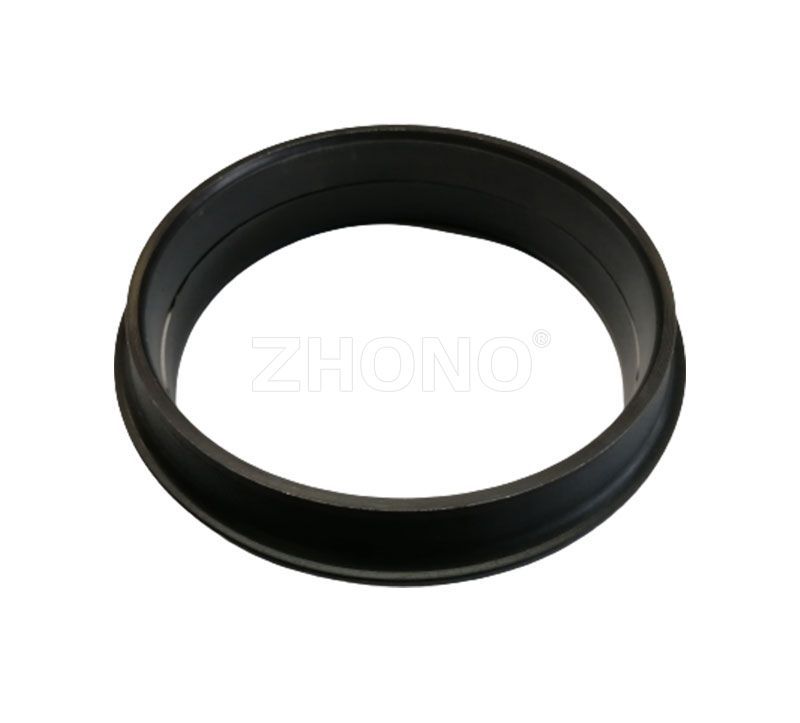

Item NO.: DO1000
Dimension: 119*100*31.8mm
Cross Reference NO.: 76.97H-08
Metal Ring Material: Alloy casting iron
Rubber Ring Material: NBR(Silicone,HNBR,FKM are also available)
Hardness: 60-72HRC
Net weight:
产品描述

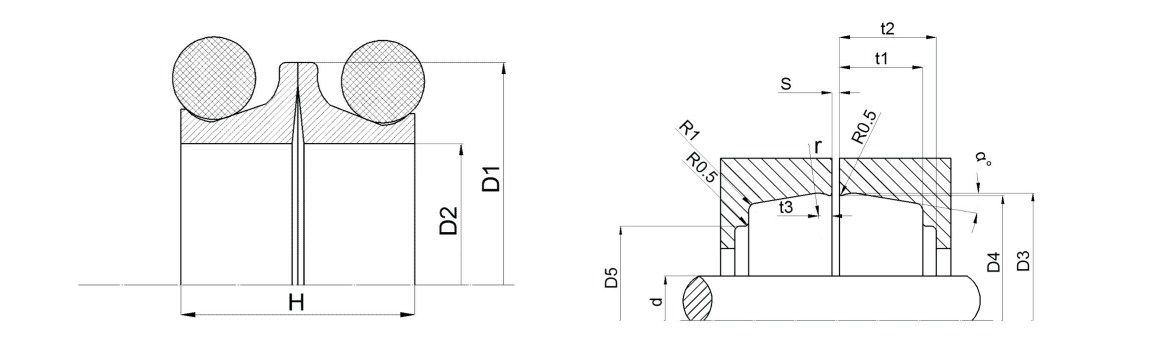

| Part No. | D1 | D2 | H | d Max | D3 | D4 | D5 | t1 | t2 min | t3 | r | α | Tol± | S | Tol± |
| DO1000 | 119 | 100 | 31.8 | 97 | 123 | 122.2 | 110 | 15.2 | 16.8 | 3.5 | 4.8 | 10 | 0.1 | 3 | 0.5 |
