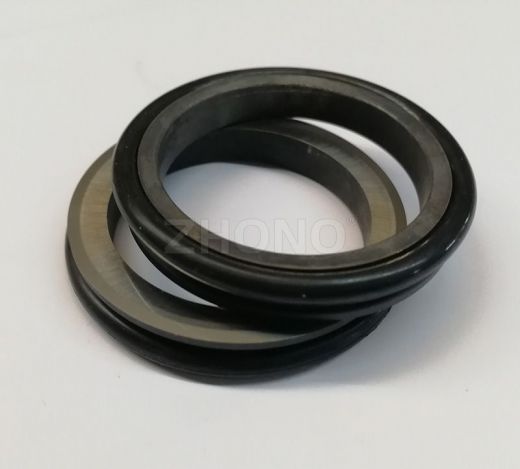

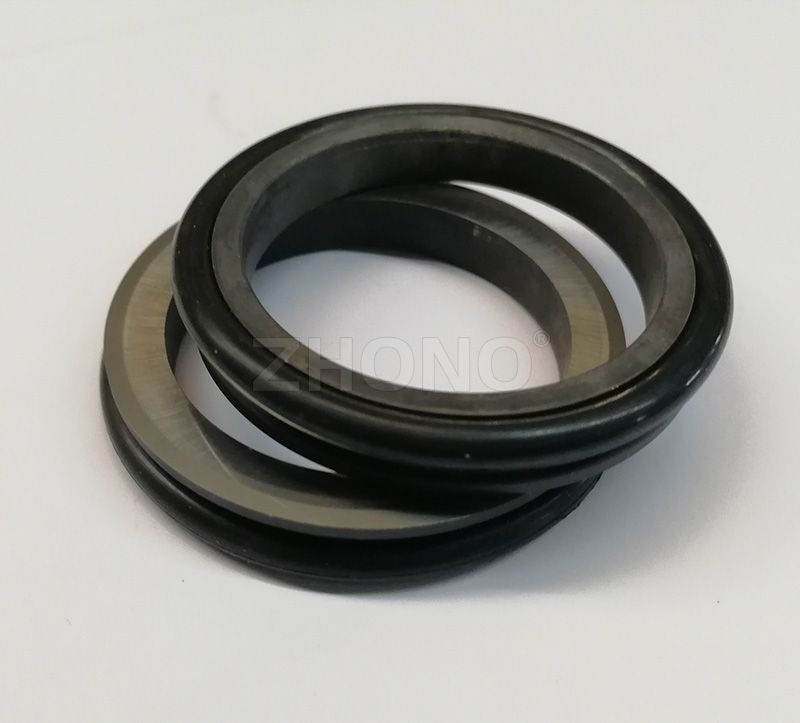

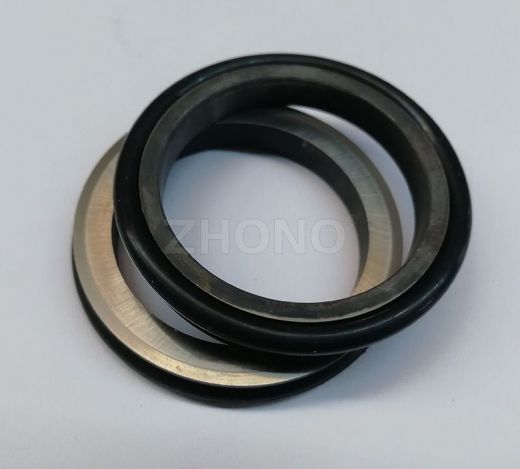

DO0390

Item NO.: DO0390

Dimension: 50*39*14mm

Cross Reference NO.: GNL 5210

Metal Ring Material: Alloy casting iron

Rubber Ring Material: NBR(Silicone,HNBR,FKM are also available)

Hardness: 60-72HRC

Net weight: 0.10kg

立即咨询下一款产品

产品描述

DO0390

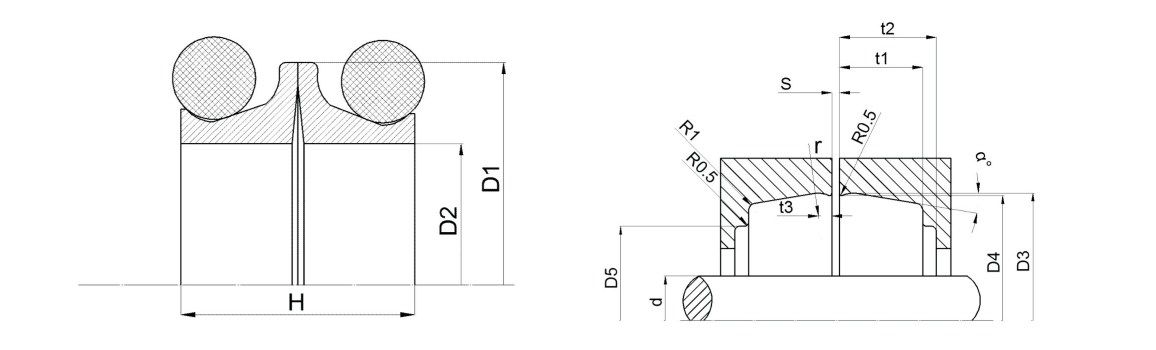

Part No.	D1	D2	H	d Max	D3	D4	D5	t1	t2 min	t3	r	α	Tol±	S	Tol±
DO0390	50	39	14	35	52	51.5	46	6.5	8	1	1	10	0.1	3	0.5
