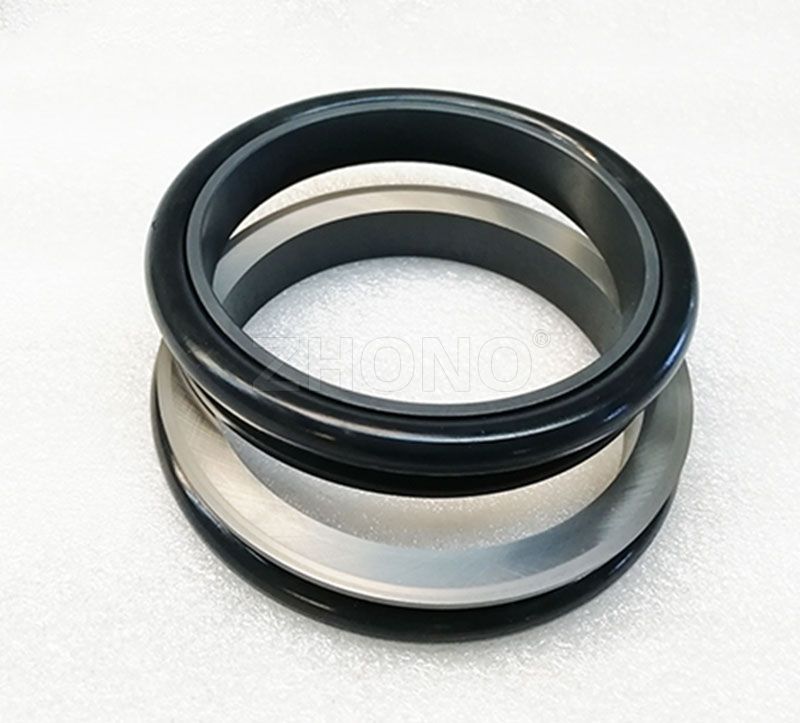

DO0905

Item NO.: DO0905

Dimension: 109.5*90.5*31.8mm

Cross Reference NO.: 76.97H- 06

Metal Ring Material: Alloy casting iron

Rubber Ring Material: NBR(Silicone,HNBR,FKM are also available)

Hardness: 60-72HRC

Net weight: 0.38kg

立即咨询下一款产品

产品描述

DO0905

Part No.	D1	D2	H	d Max	D3	D4	D5	t1	t2 min	t3	r	α	Tol±	S	Tol±
DO0905	109.5	90.5	31.8	87.5	113.4	112.7	100.4	15.2	16.8	3.5	4.8	10	0.1	3	0.5
