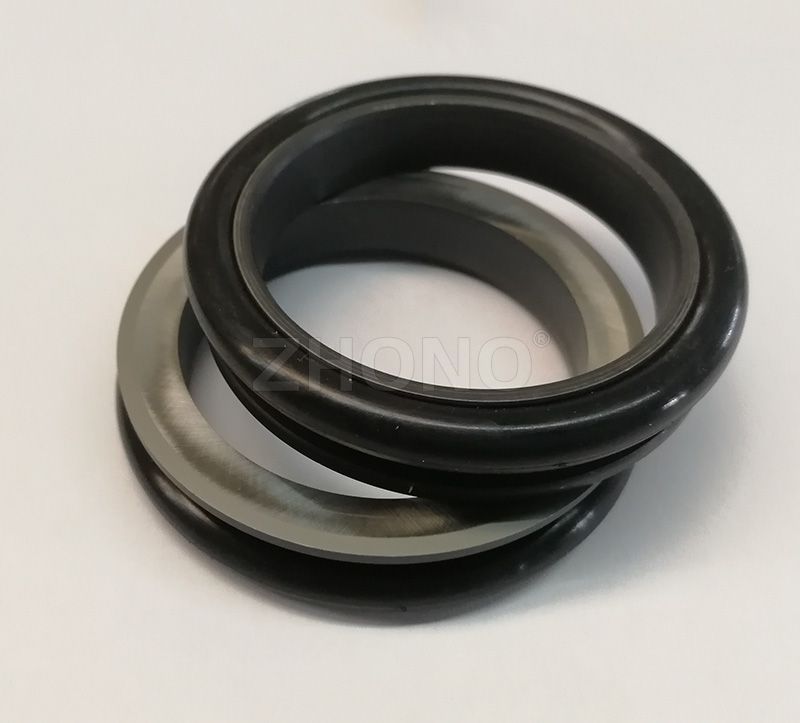

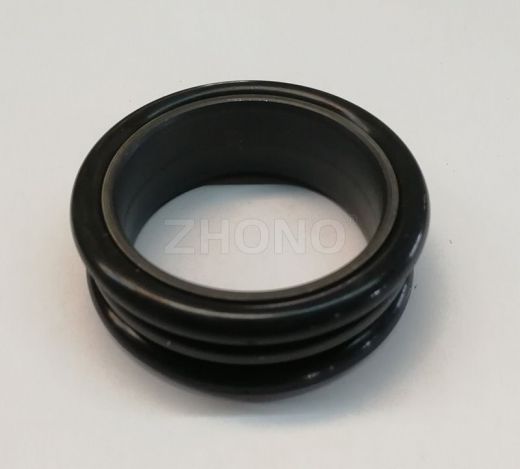

DO0460

Item NO.: DO0460

Dimension: 59*46*20mm

Cross Reference NO.: GNL 4200 76.90H-01

Metal Ring Material: Alloy casting iron

Rubber Ring Material: NBR(Silicone,HNBR,FKM are also available)

Hardness: 60-72HRC

Net weight: 0.10kg

立即咨询下一款产品

产品描述

DO0460

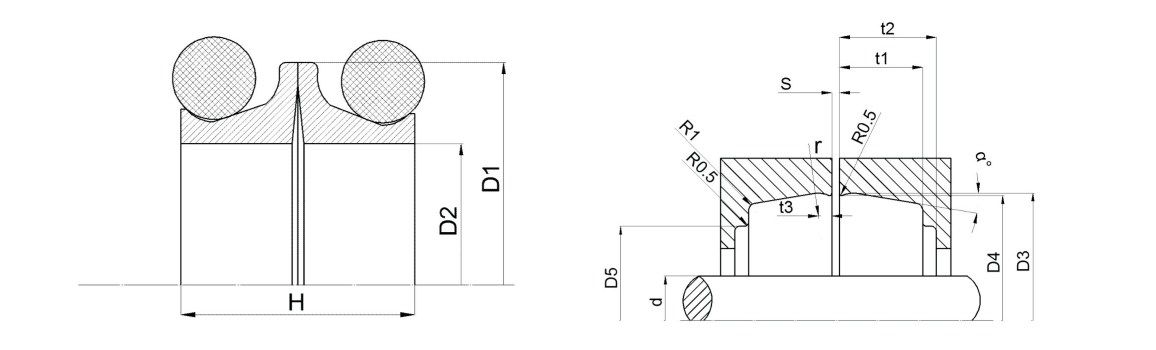

Part No.	D1	D2	H	d Max	D3	D4	D5	t1	t2 min	t3	r	α	Tol±	S	Tol±
DO0460	59	46	20	42	61.6	61.2	53	9	11	2	2.5	12	0.1	3	0.5
