首页 > 产品中心 > DO型浮动油封 > DO0730

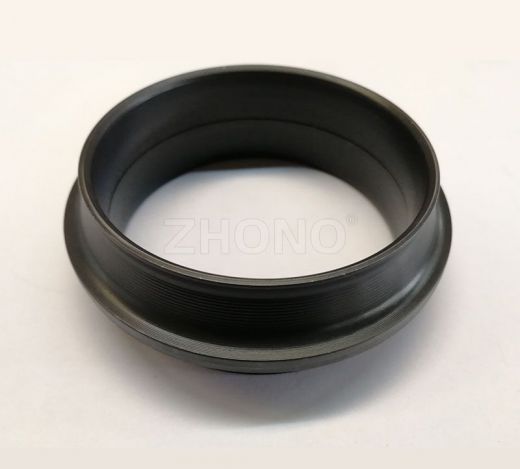

DO0730

Item NO.: DO0730

Dimension: 92*73*31.8mm

Cross Reference NO.: 76.97H-04 FP60

Metal Ring Material: Alloy casting iron

Rubber Ring Material: Silicone(NBR,HNBR,FKM are also available)

Hardness: 60-72HRC

Net weight: 0.33kg

立即咨询下一款产品

产品描述

DO0730

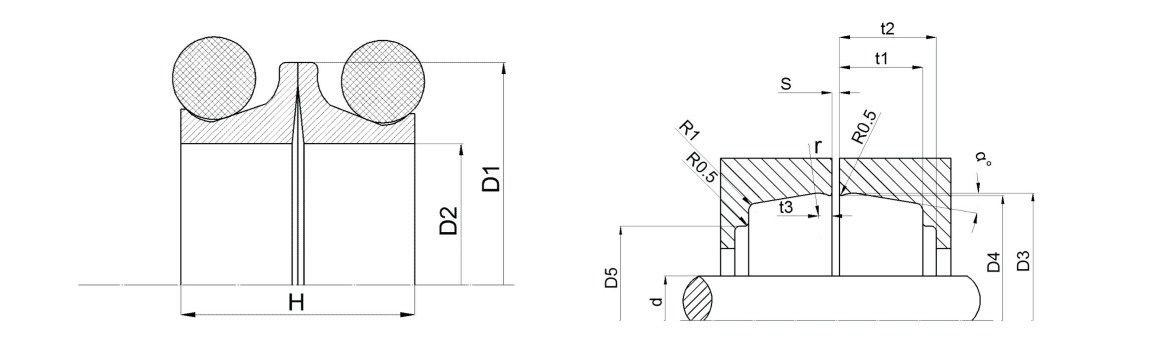

Part No.	D1	D2	H	d Max	D3	D4	D5	t1	t2 min	t3	r	α	Tol±	S	Tol±
DO0730	92	73	32	70	96	95.2	83	15.2	16.8	3.5	4.8	10	0.1	3	0.5
