首页 > 产品中心 > DO型浮动油封 > DO0635

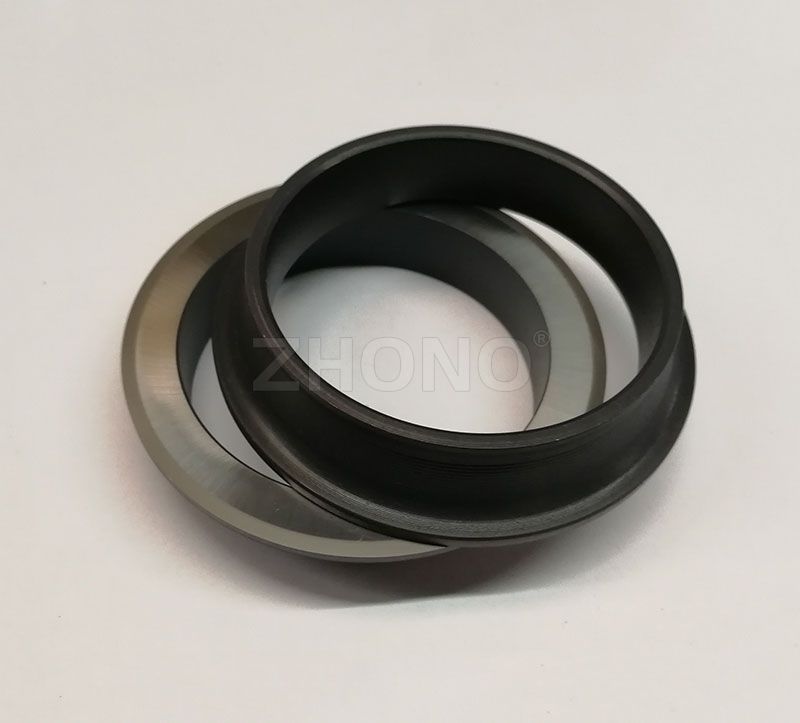

DO0635

Item NO.: DO0635

Dimension: 82.5*63.5*31.8

Cross Reference NO.: CR3107

Metal Ring Material: Alloy casting iron

Rubber Ring Material: NBR(Silicone,HNBR,FKM are also available)

Hardness: 60-72HRC

Net weight: 0.10kg

立即咨询下一款产品

产品描述

DO0635

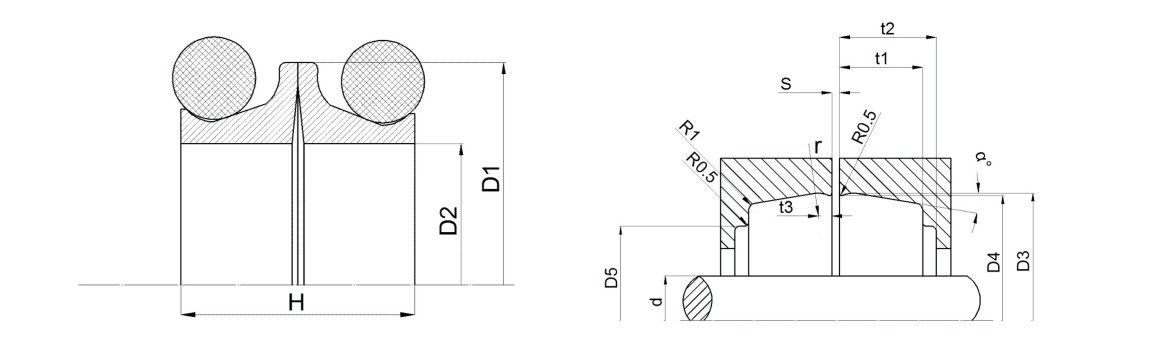

Part No.	D1	D2	H	d Max	D3	D4	D5	t1	t2 min	t3	r	α	Tol±	S	Tol±
DO0635	82.5	63.5	31.8	60.5	86.5	85.7	73.5	15.2	16.8	3.5	4.8	10	0.1	3	0.5
