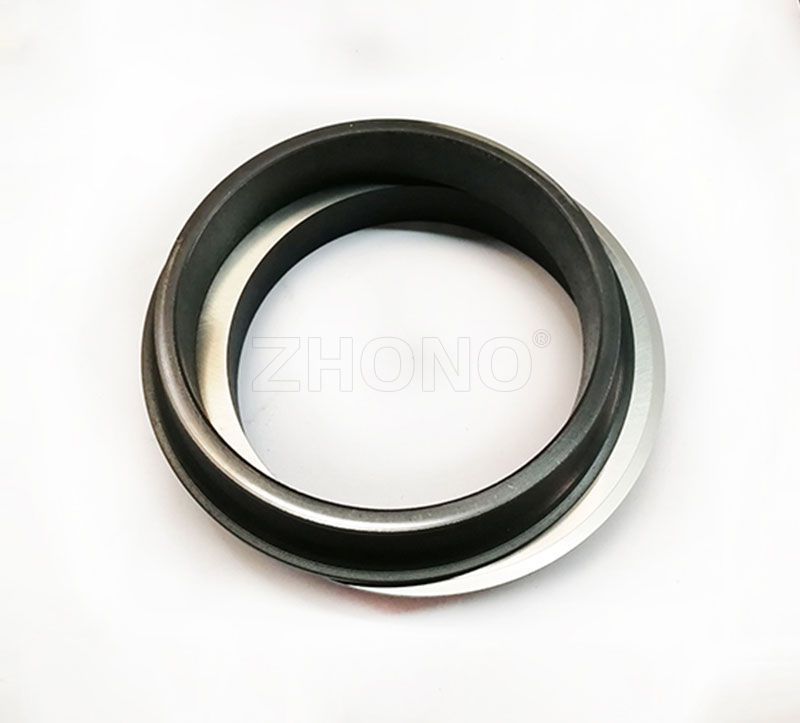

DO0800B

Item NO.: DO0800B

Dimension: 100*80*30mm

Cross Reference NO.: GNL4930

Metal Ring Material: Alloy casting iron

Rubber Ring Material: NBR(Silicone,HNBR,FKM are also available)

Hardness: 60-72HRC

Net weight:

立即咨询下一款产品

产品描述

DO0800B

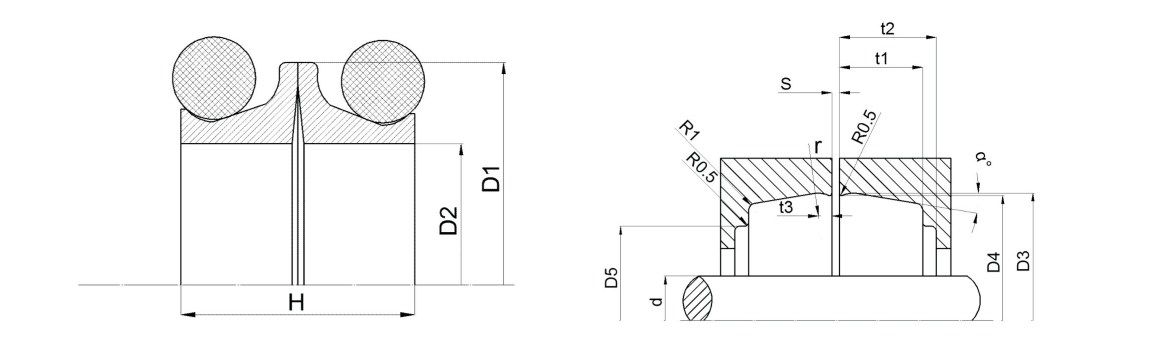

Part No.	D1	D2	H	d Max	D3	D4	D5	t1	t2 min	t3	r	α	Tol±	S	Tol±
DO0800B	100	80	30	76	104.1	103.3	93	15	18	2.3	2.5	10	0.1	3	0.5
