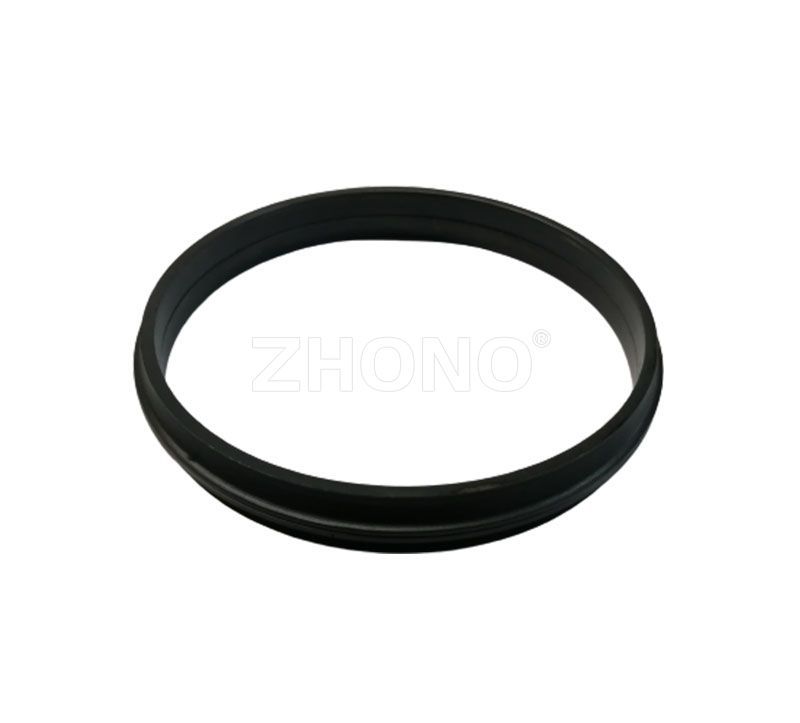

DO0965

Item NO.: DO0965

Dimension: 106.6*96.5*13.6mm

Cross Reference NO.: 9P9663

Metal Ring Material: Alloy casting iron

Rubber Ring Material: NBR(Silicone,HNBR,FKM are also available)

Hardness: 60-72HRC

Net weight: 0.13kg

立即咨询下一款产品

产品描述

DO0965

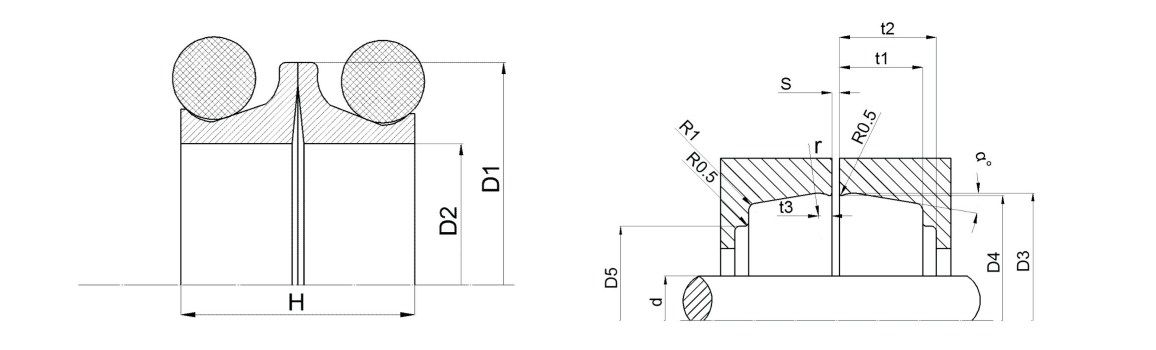

Part No.	D1	D2	H	d Max	D3	D4	D5	t1	t2 min	t3	r	α	Tol±	S	Tol±
DO0965	106.6	96.5	13.6	94.9	109.7	109.2	108.5	7.5	8	1.4	1.5	15	0.1	3	0.5
