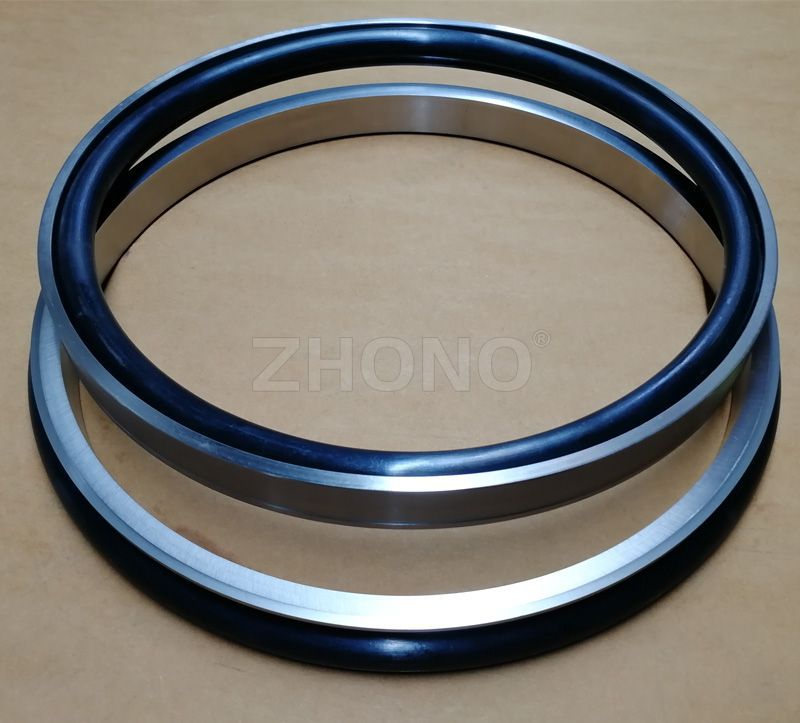

Item NO.: XY2423
Dimension: 262.8*242.3*19.5mm 262.8*243.9*20.1mm
Cross Reference NO.: 76.93-119
Metal Ring Material: Alloy casting iron
Rubber Ring Material: NBR(Silicone,HNBR,FKM are also available)
Hardness: 60-72HRC
Net weight:
产品描述

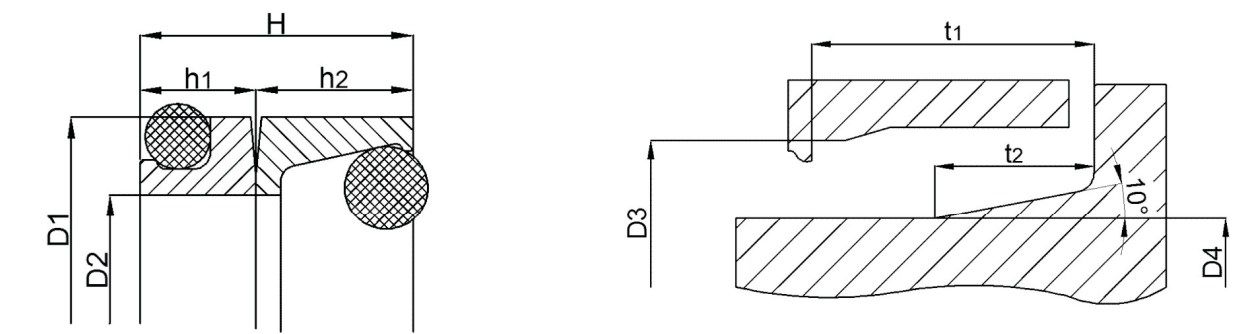

| Part No. | D1 | D2 | H | h1 | h2 | D3 | D4 | t1 | t2 |
| XY2423 | 262.8 | 242.3 | 39.6 | 19.5 | 20.1 | * | * | * | * |
