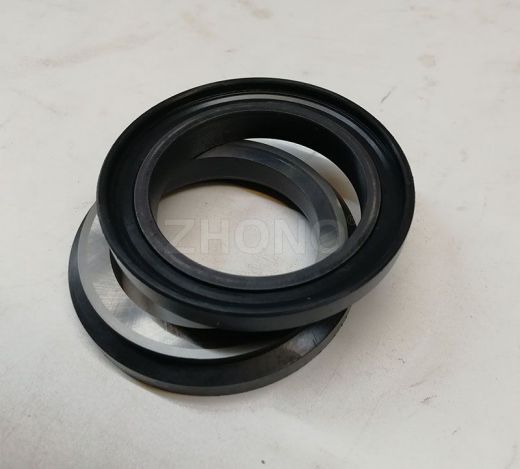

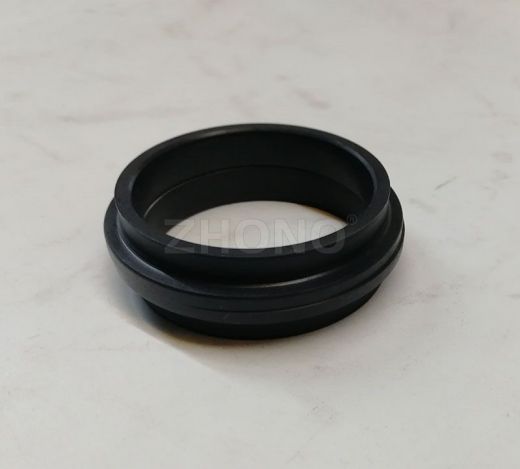

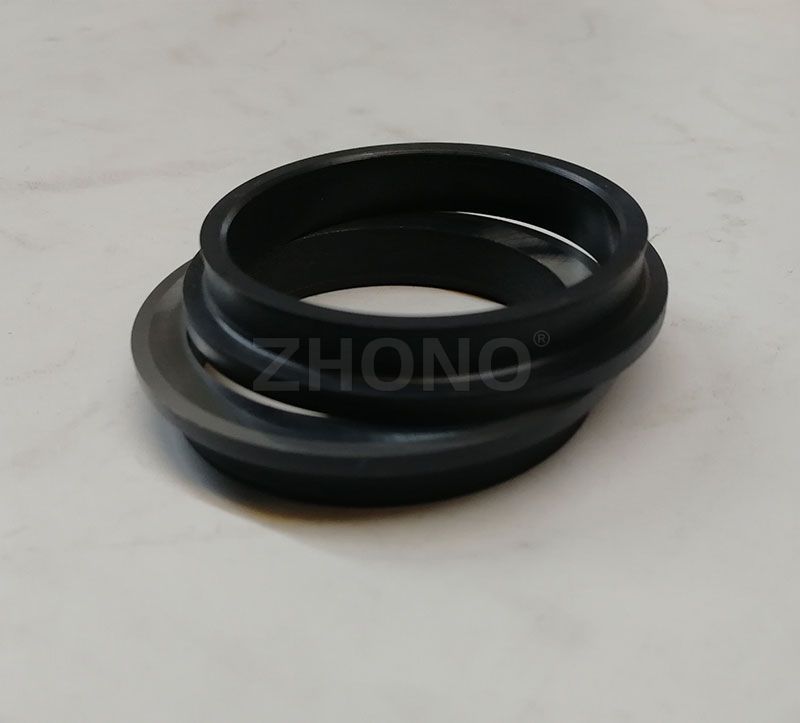

DF0460

Item NO.: DF0460*

Dimension: 59*46*18mm

Cross Reference NO.:

Metal Ring Material: Alloy casting iron

Rubber Ring Material: NBR(Silicone,HNBR,FKM are also available)

Hardness: 60-72HRC

Net weight: 0.10kg

立即咨询下一款产品

产品描述

DF0460

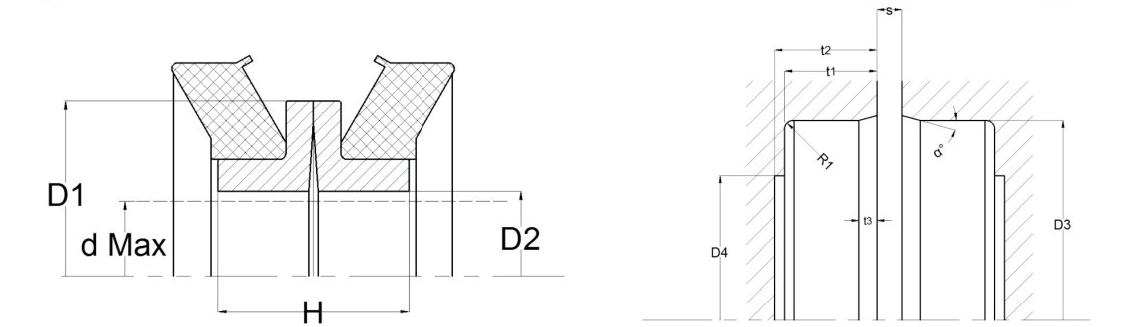

Part No.	D1	D2	H	d Max	D3	D4	t1	t2	t3	α	Tol±	S	Tol±
DF0460*	59	46	18	44	66	56	9	10.5	2	30	0.1	2	0.3
